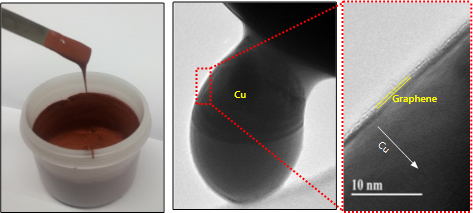

Cu-Graphene Paste

•

• -. Particle Size

  ITEM	Size
  	1.5㎛	400㎚
  Vacumm N2 Oven	200℃ 1hr	200℃ 1hr
  N2 Reflow	180℃ 5min 250℃ 20min	180℃ 5min 230℃ 20min

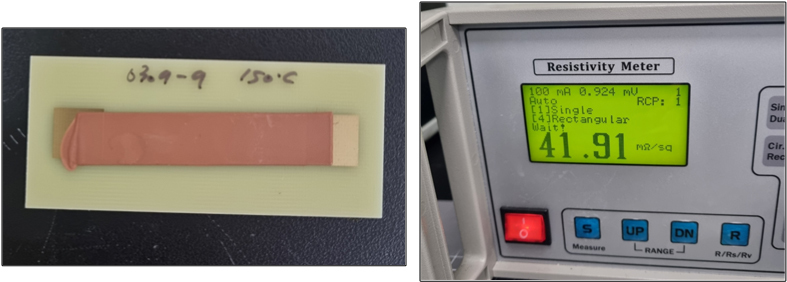

• Specific resistance

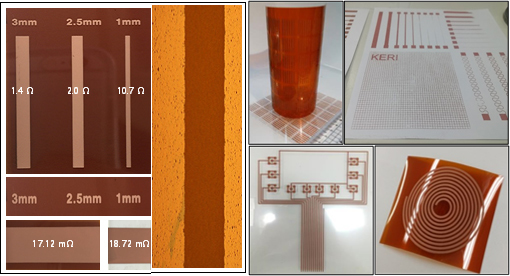

• Air Oven Type (Metal & Silk Mask) Cu-Graphene Paste



• Temperature/Humidity test (85oC, 85%)

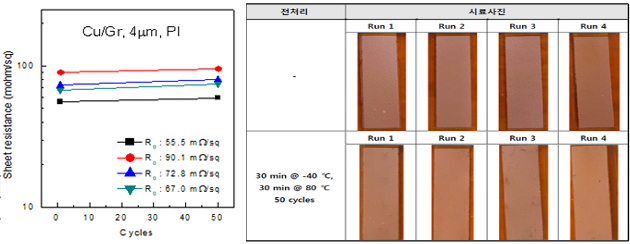

• Thermal shock test (-40oC/30min~+80oC/30min,50 cycle)



Product name	Particle Size	Specific resistance	Viscosity (cps)
DSAM-CG Series	1.5㎛	3 mΩ.cm ↓	10,000~100,000
	400㎚	3 mΩ.cm ↓	10,000~100,000
	1.5um, 400n, Hybrid	3 mΩ.cm ↓	10,000~100,000

Application

Field	Purpose	Substrate	Advantage
Display Electrode	Ag → Cu-Graphene	Glass / Film	Low Cost
Touch panel	Ag → Cu-Graphene	PET / CPI / PI Film	Low Cost / High Flexible
Via Filling	Cu → Cu-Graphene	PCB / FPCB	Anti oxidation
Thick film heater	Ag, Pd → Cu-Graphene	SUS	Anti oxidation / High Fever

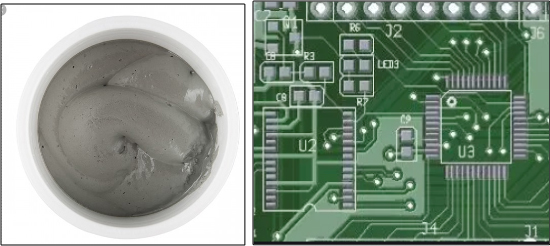

• Application field



  1. PTC heater (EV)
  2. Pattern printing
  3. Solar electrode circuit
  4. Heat dissipation material
  5. Via filling

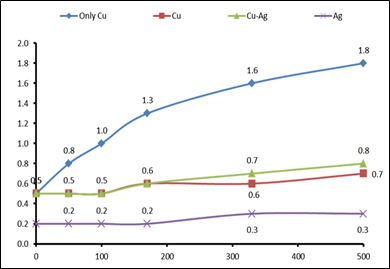

• Reliability evaluation result



  ※ Cu-Graphene has the same reliability as Ag.

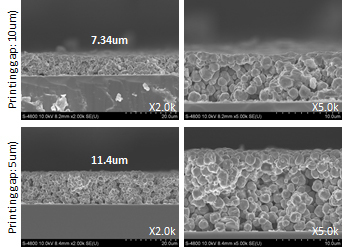

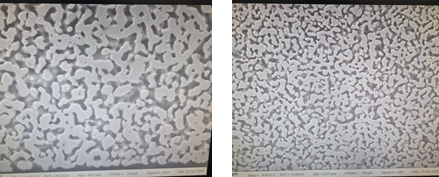

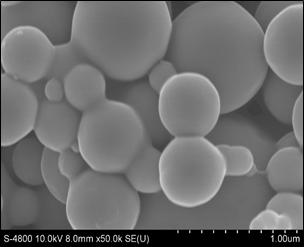

• SEM Image



  -. Binder Type
  1. Epoxy : Via filling / Heat dissipation material
  2. Polyester : Flexible Film
  3. Acryl : Pattern printing / Pattern printing Etc.

•



Solder Paste

•

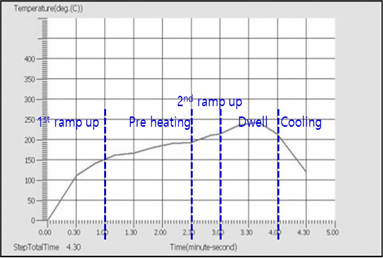

• Solder Paste Reflow Profile



  Pre heating			Dwell			Cooling
  Time	Peak(˚C)	Max(˚C)	Time	˚C	Max(˚C)	˚C/sec	˚C
  144sec	150~190	200	72sec	215˚C↑	235~250	108sec	215~120

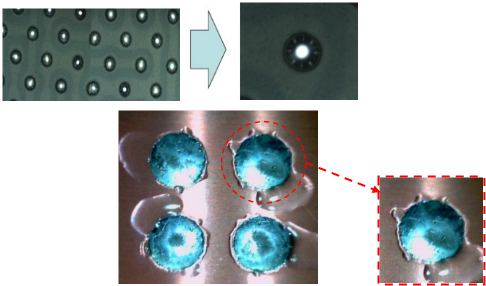

• Solder Ball & Wetting Test



• -. Sintering Type : Heating (Reflow Oven)
  -. Viscosity change : 6 month / Rate of change 15%↓
  -. Void : Max 7%↓

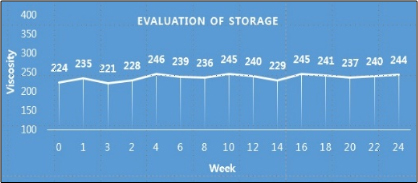

• Viscosity Evaluation Result

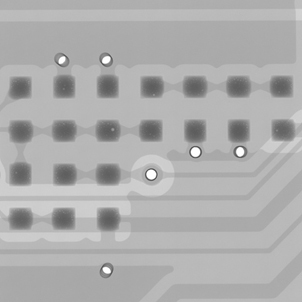

• Void Test (Max. 3%↓)



• Reflow Profile



Product name	Viscosity (Pa.s)	Alloy	Printing Guarantee Time	Other
DSAM-U/P/I Type6~Type9	200±50	SnAg3.0Cu0.5/SnCu0.7/In8	12h	Solvent Soluble : S Water Soluble : W
	200±50	SnAg3.0Cu0.5, S	12h
	200±50	SnAg3.0Cu0.5, W	12h
	200±50	SnIn8Ag3.5Bi0.5	12h

Application

Field	Purpose	Substrate	Advantage
PCB Bumping	High Printability	PCB / FPCB	Low Viscosity Change Low Void Low Cost Fast delivery
SMT (MLCC)	High Printability	PCB / FPCB
Chip Bonding	High Tackiness	PCB / FPCB

• Void / Soldering



  1. Low Void (Max. 7%↓)
  2. Self alignment Test PASS

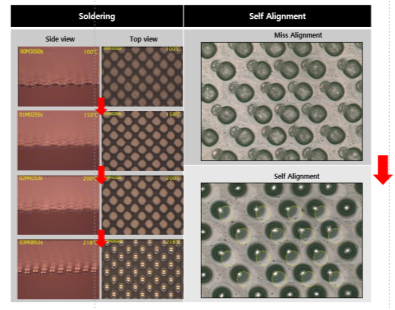

• soldering 성 및 Self Alignment 평가 결과

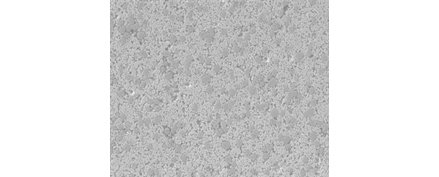

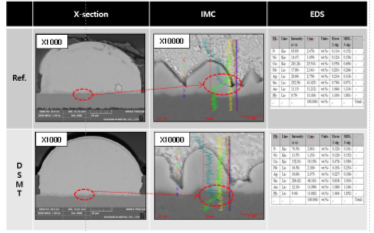

• IMC Data (SEM)



  -. IMC Data
  1. Alloy IMC formation PASS
  2. Reliability Test PASS

• IMC / Surface 평가 결과



Epoxy Solder Paste

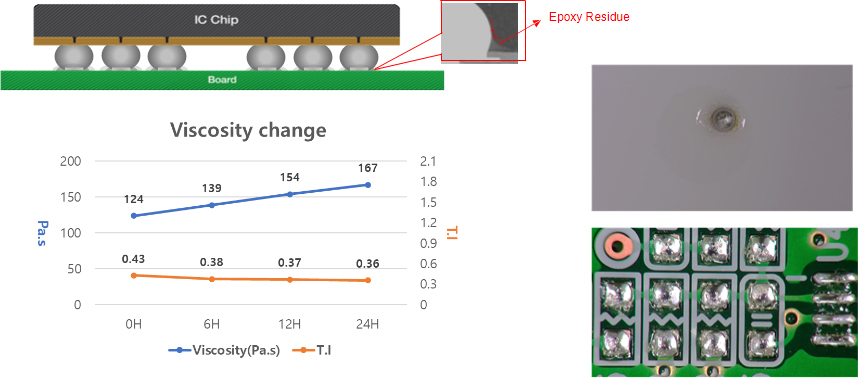

• ※ Dry Test (150℃ 24hr)

  	Before	After
  Alumina
  Glass

• Epoxy Solder Paste

  1. Screen Printing
  2. Dotting Printing
  3. Etc. (Customizing)
     -. Stencil life : 6h↑
     -. DST : SAC305 20~30%↑
     -. Void : Max 7%↓
     -. Low yellow Index

Product name	Viscosity (Pa.s)	Alloy	Printing Guarantee Time	Other
DSAM-U/P E Type6~7	20~200	SnAg3.0Cu0.5 SnAg3.0Cu0.5/SnCu0.7/In8	8h	Screen : S Pin Dotting : P

Application

Field	Purpose	Substrate	Advantage
PCB Bumping	High Strength	PCB / FPCB	Low Viscosity Change Low Void Low Cost Fast delivery
LED Bonding	High Transparency	Lead frame

Ag Paste / Ag-Graphene Powder & ACH(Ag-Cu-Gr) Paste

•

• Ag Paste & Ag-Cu-Graphene Paste

  -. Particle Size

  ITEM	Particle Size
  	1~10 um	0.6~0.8 um
  Printable Thickness	5~50㎛	5㎛↓
  Heating Oven	Low Temp.100~200 High Temp. 250~700℃ 30~90min (Customized)
  Air Condition	Air/N2	Air/N2

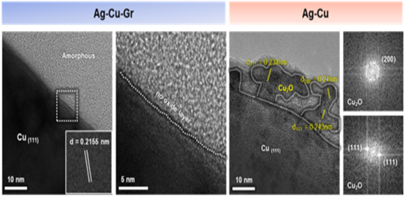

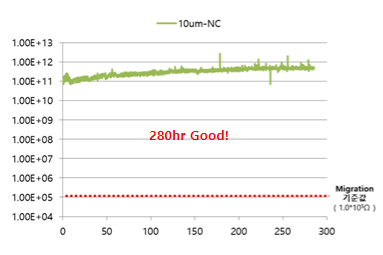

• Ag-Graphene Paste Migration Test Result



• -. Printing Type

  → Etc. (Customizing)
  -. Sintering Type : Heating, Light sintering
  -. Low Temp. Type : 100~200℃
  -. TGA : Sintering Ag or ACH Paste Hume : 10%↓
  -. bonding Type Adhesive Epoxy Type : 10.8W/mk

•

•

Product name	Particle Size	Specific resistance (200℃)	Viscosity (cps)
DSAM-AG Series	Ag Micro+Nano	1 mΩ.cm ↓	10,000~100,000
	Ag Micro	1 mΩ.cm ↓	10,000~100,000
DSAM-ACH Series	Cu-Graphene 10~30%/ Ag	5~10 mΩ.cm ↓	10,000~100,000
	Cu-Graphene 40~60%/ Ag	3~5 mΩ.cm ↓	10,000~100,000

Field	Purpose	Substrate	Advantage
Display Electrode	Ag → Ag Nano	Glass / Film	Low Resistance
Touch panel	Ag → Ag-Cu-Graphene	PET / CPI / PI Film	Low Cost / High Flexible
LED Bonding	Ag → Ag-Cu-Graphene	PCB / FPCB	Low Cost / High Adhesiveness
Thick film heater	Ag, Pd → Ag-Cu-Graphene	SUS	Low Cost / High Fever

DSAM-AG/ACH(Ag-Cu-Graphene) Series

• Introduction

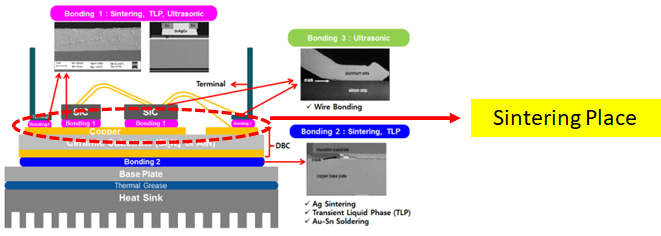

  DSAM-AG/ACH products are composite bonding materials of Ag or Cu-Graphene and are pastes used for chip bonding and die attach. It has high sintering performance and excellent bonding properties and can be used in both non-pressure and pressure processes.

•



Item	Unit	DSAM-AG	DSAM-ACH (Ag-Cu-Graphene)	DSAM-CG (Cu-Graphene)
Viscosity(Pa.s)	Pa.s	10~50	10~50	10~50
Thixotropic Index(T.I)		0.4 ~ 1.0	0.4 ~ 1.0	0.4 ~ 1.0
Viscosity Recovery rate	%	Below 10	Below 10	Below 10
Powder Content	%	Silver 90	Silver 70~50 Cu-Graphene 20~40	Cu-Graphene 90
Thermal conductivity (250℃ 120min Non-Pressure)	W/mk	200~250	120~150	N2/Vac.
TGA (250℃ 30min)	%	90~93%	90~93%	90~93%
Color		Silver	Silver or Dark Silver	Brown
Sheet resistance (200℃ 30min Non-Pressure)	mΩ/sq	1↓	10↓	N2/Vac. 50↓
Water contents in Paste	%	Less than 3.0	Less than 3.0	Less than 3.0

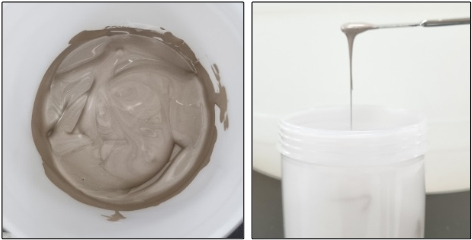

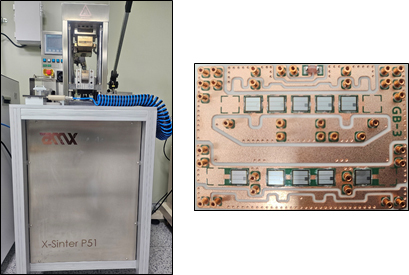

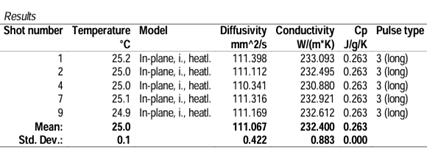

• Non- Press Type AG Sintering Paste

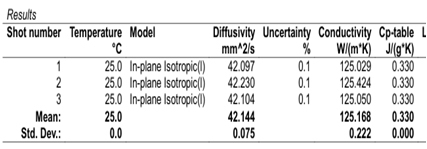

• Non- Press Type ACH Sintering Paste



• AG



• ACH



• Working conditions

  - Drying: 100℃ 3min or 120℃ 1min
  - Temporary joint
  → NPR : After pre-drying, chip bonding and then main sintering.
  → PR : Temporary chip bonding after printing line drying is performed on a 5~10kg/100~150℃ plate.
  - Pressurized sintering conditions
  Pressure: 20MPa↓
  Peak Temperature: 250~300℃
  PR Hot Press Time: MAX. 3~5min
  NPR Time: MAX. 60~120min
  Atmosphere: Air or N2

  ※ Copper paste is prepared in a vacuum/ nitrogen atmosphere

• Storage method

  Epoxy Type (EP)
  Temperature: -10℃ or lower / Thaw 1 hour
  before work
  Storage period: 6 months
  Disposal principle after operation at room
  temperature
  - Resin Type(EC)
  Temperature: 0~10℃ / Thaw 1 hour before work
  Storage period: 12 months
  Disposal principle after operation at room temperature

  ※ If the above storage conditions are followed, the storage period is guaranteed.

Solder Ball / Micro Solder Ball Flux / Non Clean Flux

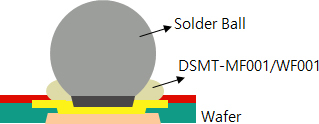

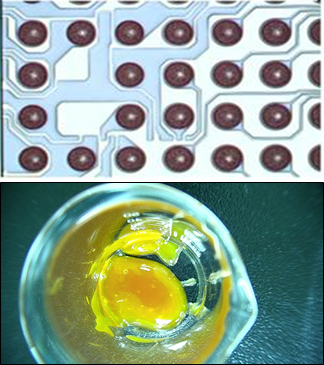

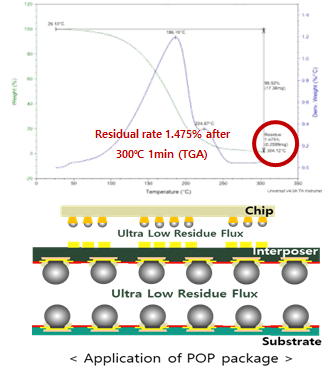

• application of Ball Flux



• Product Image



•



• Non-Clean Flux Result



Product name	Viscosity (Pa.s)	Cleaning Type	Printing Guarantee Time	Other
DSAM-WF/MF/NF	10~150	Solvent Soluble	12h	Screen Type or Pin Dotting Type
	10~100	Water Soluble	12h
	10~50	Non Clean	12h

Application

Field	Purpose	Substrate	Advantage
PCB Bumping	High Activation / Adhesiveness	PCB / FPCB	Low Viscosity Change Low Cost High Quality Fast delivery
Solder Ball Bonding	High Activation	PCB / FPCB
